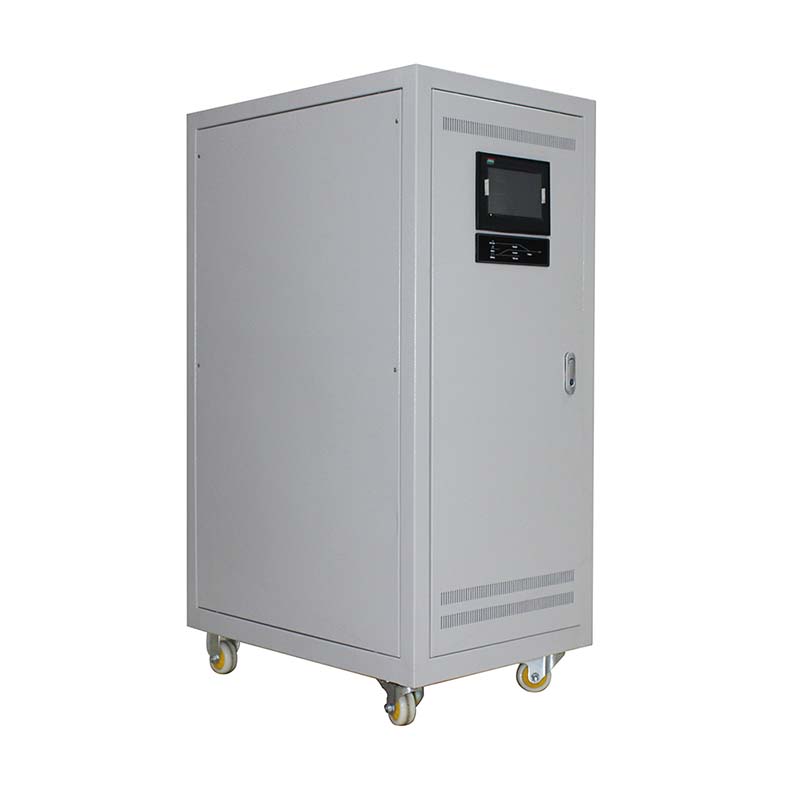

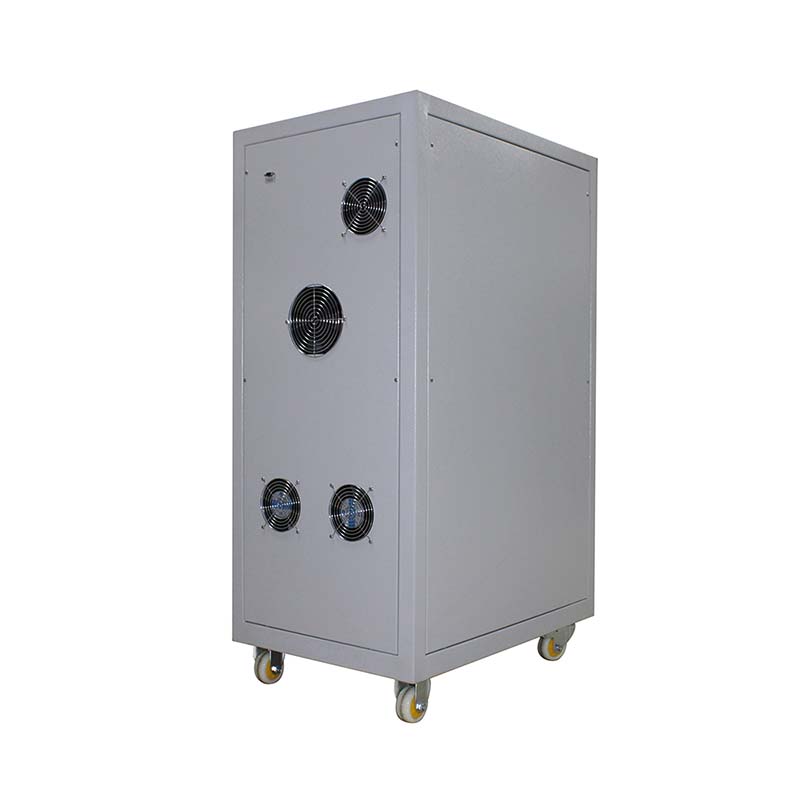

Single Phase Or Three Phase 20kw Solar Power Inverter
Single Phase Or Three Phase 20kw Solar Power Inverter
Single Phase Or Three Phase 20kw Solar Power Inverter
Single Phase Or Three Phase 20kw Solar Power Inverter

Single Phase Or Three Phase 20kw Solar Power Inverter

Single Phase IGBT 20kw Solar System Price Solar Grid Inverters Solar Inverter Hybrid

MODEL : Sol-SF-20KW

LEAD TIME : 7-15days

PRODUCT ORIGIN : CHINA

SHIPPING PORT : GUANGZHOU/FOSHAN

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Produt Details
Technical Data                                                           Sol-SF-xK Series 20K ( x for number 20)
 Model:Sol-SF- 20K
 Rated power 20KW
Battery
Rated voltage  192Vdc/216Vdc/240Vdc
Voltage of overdischarge protection 86Vdc /172Vdc/194Vdc
Battery type Lead-acid or LiFePo4
AC Input
 Phase number Signle-phase+G
 Input Voltage AC220V/±15%
Frequency 50Hz/60Hz±5%
AC Charge Current 30A(Max),This function can be selected
MPPT Controller
Max Number of MPPT 2  (192V/216V/240V50A)
Input of each MPPT 1
MPPT voltage range (Vdc) 120V~300V(96V System)   /  240~430V(192V/216V/240V System)
Recommend operating voltage(Vdc) 210V (96V System)/ 320V(192V/216V System)  / 330V(240V System)
Max. input voltage(Vdc) 300Vdc(96Vdc System)/430Vdc(192V/216V/240V System)
Maximum current of each access 50A/100A
Voltage of overcharge  protection 111Vdc/ 222Vdc/255Vdc
Efficiency >99.5%
Inverter
Output voltage  110VAC/220VAC ±5% (inversion mode)
Input frequency  50/60HZ ±1%( inversion mode)
Output frequency 50/60Hz
Inverter Output waveform  Pure sine wave, THD<4% (full load)
Efficiency  >85%
Overload With bypass:>100% loads,starting alarm,switching to bypasee mode after 1 mins;>125% loads,switching to bypass immediately;
Without bypass:>100% loads,starting alarm,shutdown after 1 mins;>125% loads,shutdown immediately
 Protection function  Output short circuit protection overvoltage protection, undervoltage protection, low battery protection, etc.
Switching time <10ms
Isolation mode Power frequency transfomer
General Data
Ambient temperature for operation 0-40℃
Relative humidity for  operation/storage 0-90%(no condensation, maximum)
Extemal dimensions DxWxH(mm) 650x570x1270
Packing dimensions: DxWXH(mm) 800x710x1440
Net Weigh(KG) 200
Packing Weight(KG) 225

SUNCHEES Can Provide What Service To Your ?

1:Professional R&D Team

We have 12+ years professional R&D team to provide customers best design , professional install/ test guide and after sale sevice, sunchees products are successfully sold to more than 130 countries,Won five-star praise from 100% customers

2:OEM/ODM Service

Sunchees can offer OEM service as per your specific requirements ,Customize the solar system and solar air conditioner solutions in the practical application ,Three new products lead the market every year.

3:Perfect after-sales service system

Once the order is confirmed, we will arrange production immediately. Powerful productivity and automation.Can promise delivery in the short term. Such as:Sampleorder(1set-10set)delivery time:5-7 workday , Bulk order:(20-100set) delivery time: 10-20 workdays.

1.Regardless of the size of the contract, we will strictly implement the provisions stipulated in the contract as scheduled with high quality and quantity; If we can't deliver on time, we will pay 5% of the total amount as liquidated damages to your company;
2. In the process of production, we will arrange a special person to feedback the production progress of the goods regularly;
3. We will pay a return visit to the implementation of each contract, to ensure that the goods timely arrives in the hands of customers.

Company profile:

Grid Tie Solar Inverter

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

Main business: solar power system one stop solutions,  solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

Top 10 Solar Inverter Manufacturers In The World
Home Inverter With Battery Price

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.
