Off Grid Solar Inverter Factory Price Hybrid Inverter Solar Battery Pack Mppt Solar Hybrid Inverter

MODEL : HIC-5KW

PRODUCT ORIGIN : CHINA

SHIPPING : Support Express · Sea freight · Land freight · Air freight

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Produt Details

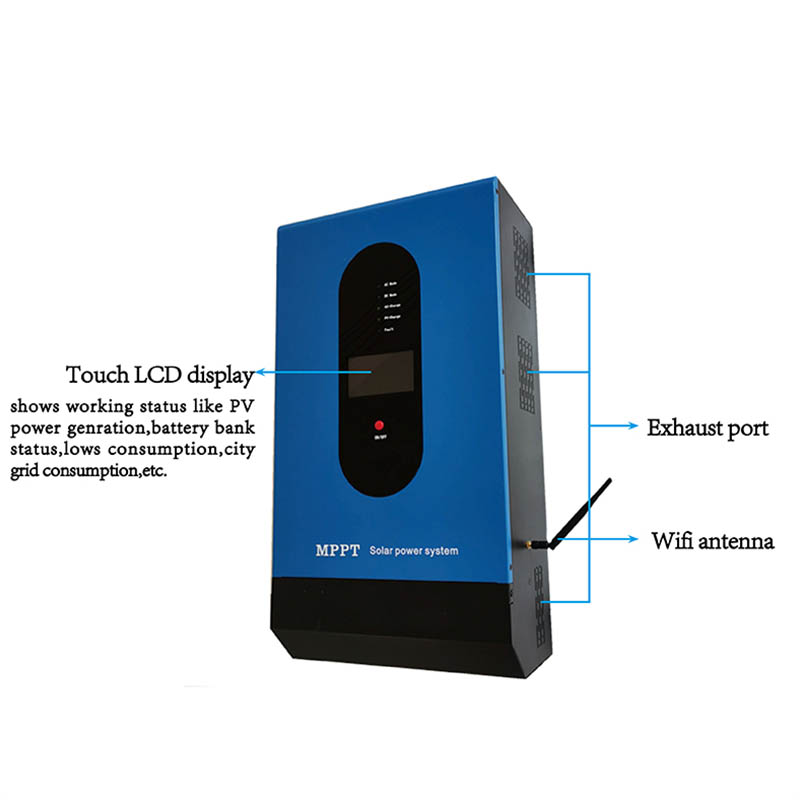

Inverter Feature:

1. MPPT solar charge controller built-in

2. Touch color screen, intelligent control, easy operation

3. Innovative operation system.All the operation adjustment can be done on the touch screen easily.Can see daily data,monthly data and total data on the screen.

4. WIFI is optional.can control the inverter remotely and check the running data

5. Lithium battery,gel battery,lead-acid battery are all acceptable.One touch can switch battery type!Just tell our sales the battery type when confirm order is OK.

6. Conformal coating is sprayed on the surface of the PCB,provide perfect protection to the inverter. low voltage protection, high voltage protection, over temperature protection, short-circuit protection, overload protection, alarm alert.

7.Big MOSFET,Big capacitor and Big heat sink. The inverter has bigger load carrying ability and higher load capacity, this series of inverter can drive not only common resistance loads,but also various kinds of inductive loads, such as air conditioner, electric drills, motors,water pump,etc.

8. Low frequency transformer based design with stable quality, low failure rate and long service life (under proper operation, it can last at least 8 years)

SOLAR INVERTER SERIES-PRODUCT OVERVIEW

Best Off Grid Power Inverter

MHIC series with dual MCU design, PV charge controller and inverter integrated optimization solutions, to provide users with the best experience. Pure sine wave output to meet various types of load;   mains supply preferred mode / power saving mode  /battery preferred mode for easy meeting of the needs of different users. Using intelligent optimization SOC control, a separate three-stage solar charge management,  improve the effectiveness of the charging of the battery.LCD display integrated inverter and photovoltaic panels, equipment operating status intuitive, concise manipulation.It is widely applied to families, schools, streets, border,pastoral, industrial equipment, satellite  communications equipment, ships and so on.

Model: MPPT

3KW-6KW

power rating(w)



1500



2000

3000

5000

4000

6000

Battery

rated voltage(VDC)

24

48

AC Charge Current

30A MAX

Battery Type

Can be set

Input

Voltage Range

170-275VAC

frequency

45-65Hz

Output

Voltage Range

220VAC-240VAC; ±5%( Inverter mode)

frequency

50/60Hz±1%( Inverter mode)



Output wave

Pure Sine Wave

Change time

<10ms(Typical load)

Efficiency

>85%(80% Resistive load)

overload

110-120%/30S;>160%/300ms;

Protection function

Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection

Solar Controller

MPPT Voltage Range

24VDC:36V~150VDC;48VDC:72V~150VDC

PV Power

24VDC-30A(800W);60A(1600W)

48VDC-60A(3200W)

Rated charge current

60A(Max)

MPPT efficiency

≥99%

Average charging voltage

(lifepo4 lithium battery)

24V/28.4VDC;48V/56.8VDC

Floating charge voltage

24V/28VDC;48V/56VDC

Operating ambient temperature

-15-+60℃

Storage ambient temperature

-20 - +60℃

Operating / storage environment

0-90%  No Condensation

Dimensions:W * D * H (mm)

490*220*160

680*350*200

Packing size: W * D * H (mm)

560*285*230

750*410*250

Solar Inverter For Home Price

SUNCHEES Can Provide What Service To Your ?
1:Professional R&D Team
We have 12+ years professional R&D team to provide customers best design , professional install/ test guide and after sale sevice, sunchees products are successfully sold to more than 130 countries,Won five-star praise from 100% customers

2:OEM/ODM Service
Sunchees can offer OEM service as per your specific requirements ,Customize the solar system and solar air conditioner solutions in the practical application ,Three new products lead the market every year.

3:Perfect after-sales service system
Once the order is confirmed, we will arrange production immediately. Powerful productivity and automation.Can promise delivery in the short term. Such as:Sampleorder(1set-10set)delivery time:5-7 workday , Bulk order:(20-100set) delivery time: 10-20 workdays.

Regardless of the size of the contract, we will strictly implement the provisions stipulated in the contract as scheduled with high quality and quantity; If we can't deliver on time, we will pay 5% of the total amount as liquidated damages to your company;

2. In the process of production, we will arrange a special person to feedback the production progress of the goods regularly;

3. We will pay a return visit to the implementation of each contract, to ensure that the goods timely arrives in the hands of customers.

Company profile:

solor power panel self install

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

Main business: solar power system one stop solutions,  solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

complete solar system for home
lithium battery for solar system

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.
