ON/OFF Grid solar inverter combines the best from grid-tied and off-grid solar systems. These systems can either be described as off-grid solar with utility backup power, or grid-tied solar with extra battery storage.

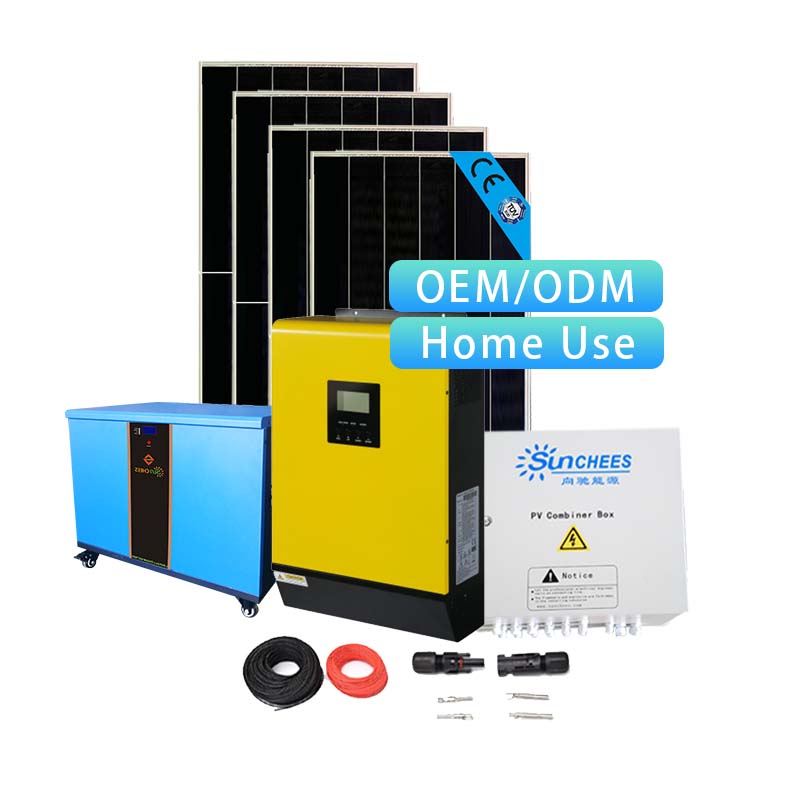

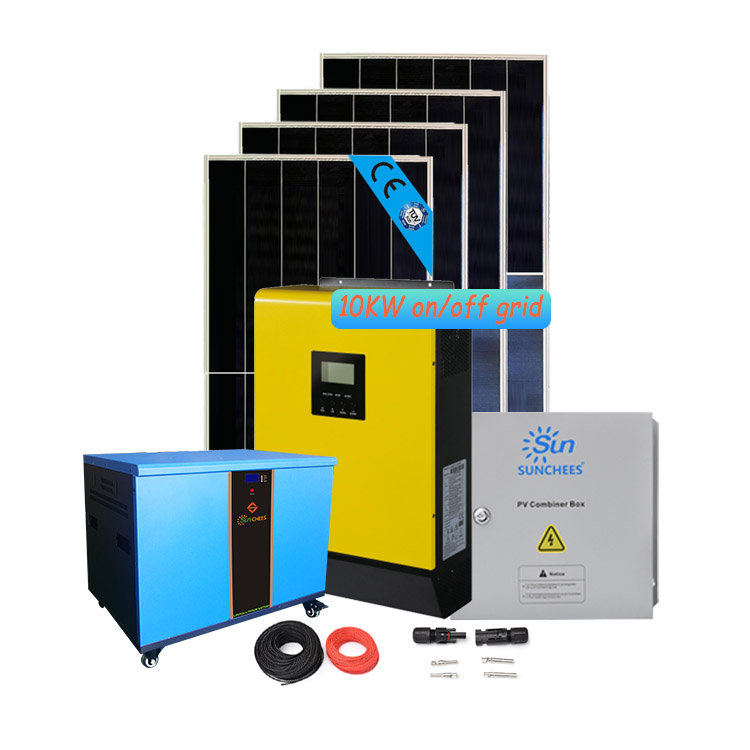

| Off grid solar power supply system Model: SP10000W |
| System Basic Information |
Solar panel rated output power: 10KW |
| Allowable max loads power : 10KW |
|
Mono Poly
|
Solar panel type: SP500W Half Cell mono |
| Max power :500w / Vmp:40.5V Voc:48.7V Solar Cell Use Half Cell |
| Imp 12.34A Size : 2176*1098*40mm |
| 25 years life time (CE TUV) Warranty:10 years ,ship the free one for service |
| Connect way:2pcs solar panel in series is each string. 5strings connect to PV combiner |
| Effieiency performace:25%years 80%,20years 85%.10 years 90% |
| Total : 10PCS |
Terminal block: IP65 with MC4 connector |
 |
PV combiner Modell: PC4-48V |
| Multiple PV strings inputs ;Simplify wiring between PV array and controller |
| protections to controller ; thunderstorm& surge protection |
|
| Total :1PCS |
Warranty:2 years , ship the free one for service |
 |
ON/OFF Grid Hybrid Solar Inverter |
Programmable multiple
operation modes: Grid-tie, Offgrd and grid-tie with backup |
with MPPT 48V 100A
Charging efficiency; 90%-95%, Built-in AC charger (public network) |
| Output: 220v, 230v, 240 V(optional) Product size:370*195*570mm |
| Total : 1 Set Warranty :1 years, ship the free a main board by DHL or FEDEX for service |
 |
LiFePO4 lithium battery 13.31KWH(260AH/51.2V) |
| Rated voltage:51.2V(43.2V-58.4V) |
| Lifespan: 8-10 years.Full discharge cycle times:more than 2000 times |
| Connect way: 1pcs connect to solar hybrid inverter |
| Weight:65kgs |
| Total : 1PC warranty :3 years |
 |
Solar panel rack Slope Rooftop or Flat rooftop |
| including complete fittings, wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable |
| Total : 1 Set |
 |
PV Cable |
| 2pcs 16mm2*1M battery cable ;4mm2 PV cable 100M;MC4 terminal connectors |
 |

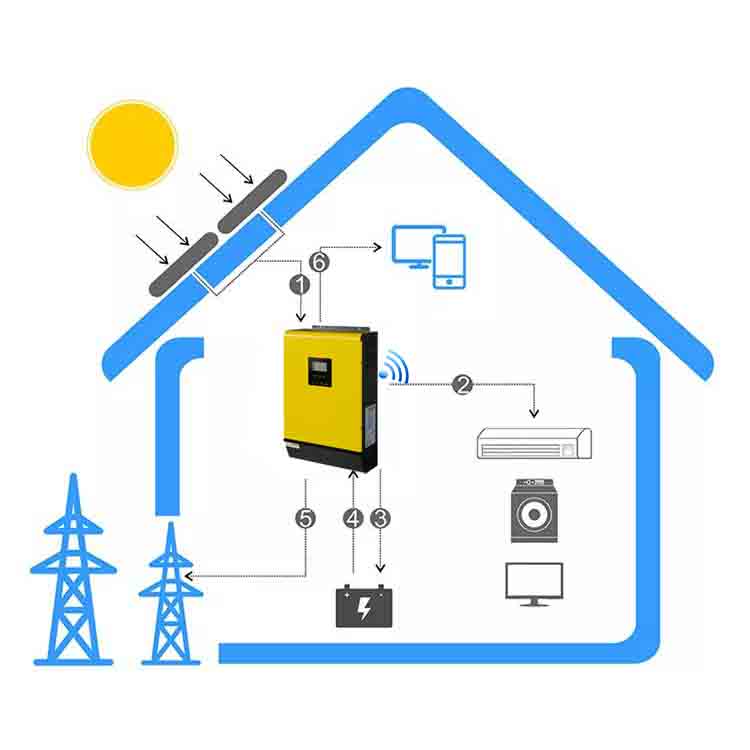

HYBRID SOLAR SYSTEM
1. Generate solark
2. Use it directly
3. Store it for later use
4.Use stored energy
5. Feed surplus energy into the grid
6. Monitoring and control |
ON-GRID Inverter With Energy Storage
|
Operation without battery
1.Pure sine wave output
2. Self-consupmtion and Feed-in to the grid
3. Programmable supply priority for PV. Battery or Gird
4User-adjustable charging current and voltage
5.Programmable mulitple operation modes: Grid-tie. off-gird and gird-tiewith backup
6.Monitoring software for real-time status display and control
7.Parallel operation up to 9 units
8.Battery Independent system
|
 |
LiFePO4 Battery System For Households Use
 |
MAIN FEATURES
- Iron Phosphate-lithium Battery Powerwall: 95% DOD, More than 6000 cycle times
- Long warranty period：5 years, Real life span can Last for more than 10 years.
- Higher energy density,smaller volume for household.
- Support Connected in parallel mode for expansion (up to 6 pieces)
- Photovoltaic system: this battery pack is designed for household photovoltaic systems.
- Battery management system(BMS): the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
- Expand ability: this battery pack can be easily expanded by adding expansion battery packs in parallel connection.
- Easy to move.Lithium battery box with 4 pcs wheels.
|
SUNCHEES advantages
We have a separate cell detection workshop, which will detect and sort cells from four aspects: cell efficiency / power / color / El;
What is the purpose of solar cell sorting? (100% detection rate)
1. Encency s. powver sorting: with the povver difference of O. twiplete as the standard,. the battery pleces are dsunguished, unich can ensure tha: the power error of the tnished solar panel is reduced
controlled within sw every day and there will not be such a large power cimerence;
2. color the machine carries cuf color sorting on the battery pieces in the form of graboing lignt spots (1.9 for 9 color numbers). which can largely avoid the problam of color ciferene
3. Er El desecion is a very important detection rich can avoid or control the occurrence of hiccen cracks in tnisned products. if there are hidden cracks, the le cf the battery panel will be affected:
Warranty policy:
- Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
- lithium battery has 3 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
- Inverter,charge controller,and PV combiner have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement
Customer Installation Feedback
Ghana 40 'container solar power system
Company profile：
 |
Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.
|
|
Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .
|
 |
 |
Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.
|
