What’s in an off-grid solar system?

We assemble, wire, and test all the parts necessary to run your off-grid system right in our warehouse. Our designers are pros at building flexible systems that can be expanded if your energy needs change down the road.

20kw off grid solar system configuration:

Off grid solar power supply system Model: SP20000W
System Basic Information	Solar panel rated output power: 18KW
	Allowable max loads power : 20KW
Mono             Poly	Solar panel              Type: SP600W Mono solar panel
	Max  power: 600w Vmp:42.4V Voc:50.3V Imp 14.1A
	Size:2279*1134*35mm Weight:28KG/PCS CE&TUV&ROHS
	10 year >91.2% ofnominal power output, 25 year >88.7% of nominal
	power output,operating temperature:-20C - +80C
	Connect way: 6pcs solar panel in series, 5 series in parallel
	Total :30PCS	Warranty: 30 years

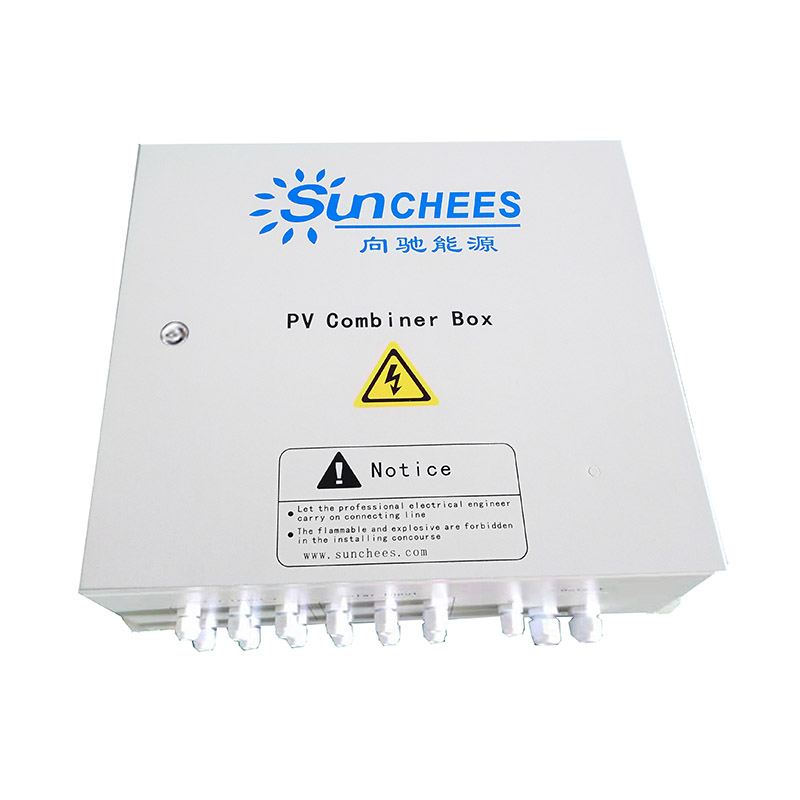

	PV combiner                  Modell: PC6-96V
	Multiple PV strings inputs ;Simplify wiring between PV array and controller
	protections to controller ;  thunderstorm& surge protection
	Total :1PCS	Warranty:2 years , ship the free one for service
	Pure Sine Wave lGBT Module solar Inverter
	Model: SI20kw DCinput:192v Output:110v,120v,220,230v,240v(optional)
	Use copper transformer; Bypass function with AC charger
	Product size:900*600*1380mm/ Weight:190KG
	Total : 1 Set Warranty :2 years, ship the free a main board by DHL or FEDEX for service

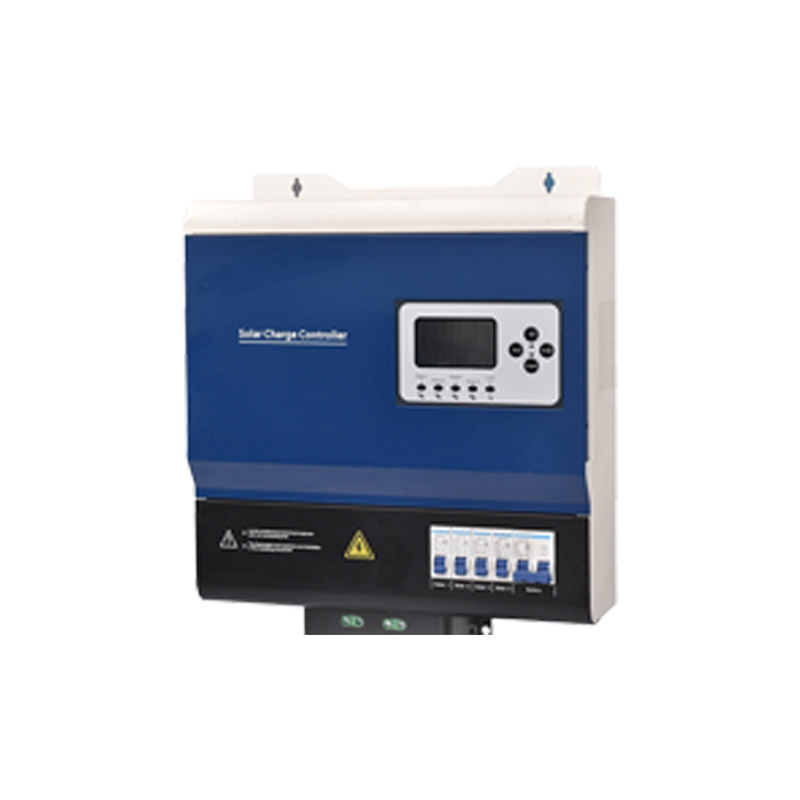

	Solar Charge controller Model:100A/192V Charging efficiency: > 99%，charging mode, intelligent control., temperature compensation, various protection functions Total :1 Set Warranty: 2 years
	LiFePO4 lithium battery         49.92kwh(260Ah/192V)/ set
	Rated voltage: 160V-219V DOD:90%
	Lifespan: 8-10 years.
	6000 cycles of discharge capacities rate: 80%
	Weight:730KG
	Total : 1PC  warranty :3 years
	Solar panel rack           Slope Rooftop or Flat rooftop
	including complete fittings,wind load:55m/ssnow load:1.5kn/m2structure:Anodized Aluminum+stainless steel, Angle adjustable
	Total : 1 Set
	PV Cable
	4pcs 16mm2*1M battery cable mm2 PV cable 200M; MC4 terminalconnectors,2pcs 100A DC breaker

20kw  solar system load reference:

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

How does the off grid solar power system work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

Advantage:

100%green energy，no pollution，no noise
High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
Stand-alone system,easy installation and operation
Nice after-sale service,provide installation guide and technical support ​

Packing details:

Solar panels are packed in carton and pallet
PV combiners and inverter are packed in wooden box
Solar charge controller,gel battery,and cables are packed in carton
Solar panel racks are in cartons and bulk packing​
