5Kw Off Grid Solar Roof Mounting System Complete Kit
5Kw Off Grid Solar Roof Mounting System Complete Kit
5Kw Off Grid Solar Roof Mounting System Complete Kit
5Kw Off Grid Solar Roof Mounting System Complete Kit

5Kw Off Grid Solar Roof Mounting System Complete Kit

Residential Solution Solar Energy Storage System 5Kw Off Grid Solar Roof Mounting System Complete Kit

MODEL : SP-5KW

SYSTEM TYPE : Off-Grid Solar System

PRODUCT ORIGIN : CHINA

SHIPPING : Support Express · Sea freight · Land freight · Air freight

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Produt Details

5KW off grid solar system configuration:

Half cell solar panel

Model : 470W-500W Vmp:40.5V

Voc:48.7V Size :2176*1098*40mm

High reliability High efficiency up to 22%

Life time : 25 years

Solar inverter with MPPT charger controller

Touch color screen Intelligent control,

easy operation Lithium battery , gel battery

all acceptable pure sine wave inverter and a UPS fuction .

Remote monitoring is Auail-able by Using WIFI monitoring kit.

Solar Home Battery Price

Lithium battery

Nominal voltage : 51.2V

Nominal Capacity : 260AH

Cycles time: 6000 Life time : 10 years

Main Disconnect Box

DC Disconnect

AC Disconnect

Battery Disconnect

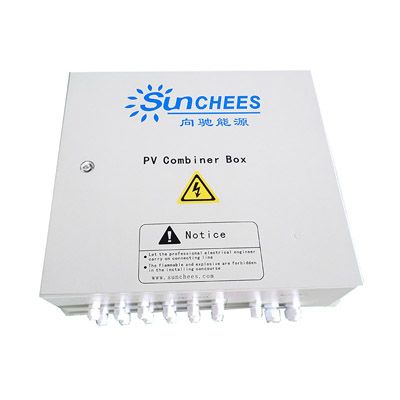

PV Combiner

Flexible Inputs Optional

IP65 Protection Degree

DC Cable & MC4 Connect & YBranch

Cross Section:4mm2,6mm2 Optional

Rated Voltage:600VDC(UL)/1000-VDC(TUV)

Rated Current:55A,70A

Colors:Black For STD,Red Optional.

Lifetimes:≤25 years

PV Mounting System

Mounting Rail & Rail Splice Kit:

Al6005 & SUS304 Bolt. Mid & End Clamps:35,40,45,50mm

L Foot Asphalt Shingle Moount & Hanger Bolt Optional

Cable Clip & Tie Optional

Ground Clip & Lugs Optional

5KW  Solar Rooftop Off Grid System load reference:

5Kw Solar Panel System
Load Name Load'S Watt Qty Total Watt
Lights 11w 8 88w
Fan 80w 2 160w
Computure 150w 2 300w
Printer 250w 1 250w
Fax Machine 150w 1 150w
Refrigerator 120w 1 120w
Washing Machine 300w 1 300w
Microwave 1000w 1 1000w
Electric Cooker 300w 1 300w
Air Conditioner 1500w 1 1500w
Satellite Tv Receiver/Vcd 25w 1 25w
Color Tv 100w 2 200w
Water Pump 200w 1 200w
Total 4513w

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

SUNCHEES Can Provide What Service To Your ?
1:Professional R&D Team

We have 12+ years professional R&D team to provide customers best design , professional install/ test guide and after sale sevice, sunchees products are successfully sold to more than 130 countries,Won five-star praise from 100% customers

2:OEM/ODM Service
Sunchees can offer OEM service as per your specific requirements ,Customize the solar system and solar air conditioner solutions in the practical application ,Three new products lead the market every year.

3:Perfect after-sales service system
Once the order is confirmed, we will arrange production immediately. Powerful productivity and automation.Can promise delivery in the short term. Such as:Sampleorder(1set-10set)delivery time:5-7 workday , Bulk order:(20-100set) delivery time: 10-20 workdays.

Regardless of the size of the contract, we will strictly implement the provisions stipulated in the contract as scheduled with high quality and quantity; If we can't deliver on time, we will pay 5% of the total amount as liquidated damages to your company;

2. In the process of production, we will arrange a special person to feedback the production progress of the goods regularly;

3. We will pay a return visit to the implementation of each contract, to ensure that the goods timely arrives in the hands of customers.

Company profile:

solor power panel self install

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

Main business: solar power system one stop solutions,  solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

complete solar system for home
lithium battery for solar system

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.

solar inverter certifiction solar system adventagecontact us
