6Kw Complete Hybrid Solar Energy Storage Power Systems For Home

What’s in an off-grid solar system?

We assemble, wire, and test all the parts necessary to run your off-grid system right in our warehouse. Our designers are pros at building flexible systems that can be expanded if your energy needs change down the road.

6KW off grid solar system configuration:

	Solar Panel Type: SP500W Half Cell mono Max power: 500w/Wmp:40.5V Woc:48.7V Imp12.34A Size:2176*1098*40mm  Solar Panel Effieciency:22% Connect way: 4pcs solar panel in series, 3 series in parallel Terminal block: Ip65 with Mc4 connector 25 years life time (CE TUV) Warranty:10 years ,ship the free one for service
Lithiuml Battery 13.3KWH(260AH/51.2V1 Rated voltage:51,2w(43.2v-58.4V) Lifespan:8-10 vears. Full discharge cycle times: more than 6000 times Connect way: ipcs connect to solar hybrid inverterWeight: 150kgs Warranty:5 years
	Off Grid solar Inverter Solar inverter with controller built it InverterPower: SI6KW/48v With built-in MPPT controller: 120A/48V Charging efficiency: 99%, Built-in Ac charger (public network)Output: 220v (optional) Warranty: 2 years, ship the free a main board for service
PV combiner box Modell:pc4-48V Multiple PV strings inputs Simplify wiring between PV array and controller thunderstorm& surge protection Warranty:2 years ,ship the free one for service
	Solar panel rack Slope Rooftop or Flat roofto pincluding complete fittings,wind load:55m's, snow load:1.5kn/m2 structure: Anodized Aluminum+stainless steel, Angle adjustable

6KW  solar system load reference:

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

SUNCHEES Can Provide What Service To Your ?

1：Professional R&D Team

We have 12+ years professional R&D team to provide customers best design , professional install/ test guide and after sale sevice, sunchees products are successfully sold to more than 130 countries，Won five-star praise from 100% customers

2:OEM/ODM Service

Sunchees can offer OEM service as per your specific requirements ,Customize the solar system and solar air conditioner solutions in the practical application ，Three new products lead the market every year.

3：Perfect after-sales service system

Once the order is confirmed, we will arrange production immediately. Powerful productivity and automation.Can promise delivery in the short term. Such as:Sampleorder(1set-10set)delivery time:5-7 workday , Bulk order:(20-100set) delivery time: 10-20 workdays.

Regardless of the size of the contract, we will strictly implement the provisions stipulated in the contract as scheduled with high quality and quantity; If we can't deliver on time, we will pay 5% of the total amount as liquidated damages to your company;

2. In the process of production, we will arrange a special person to feedback the production progress of the goods regularly;

3. We will pay a return visit to the implementation of each contract, to ensure that the goods timely arrives in the hands of customers.

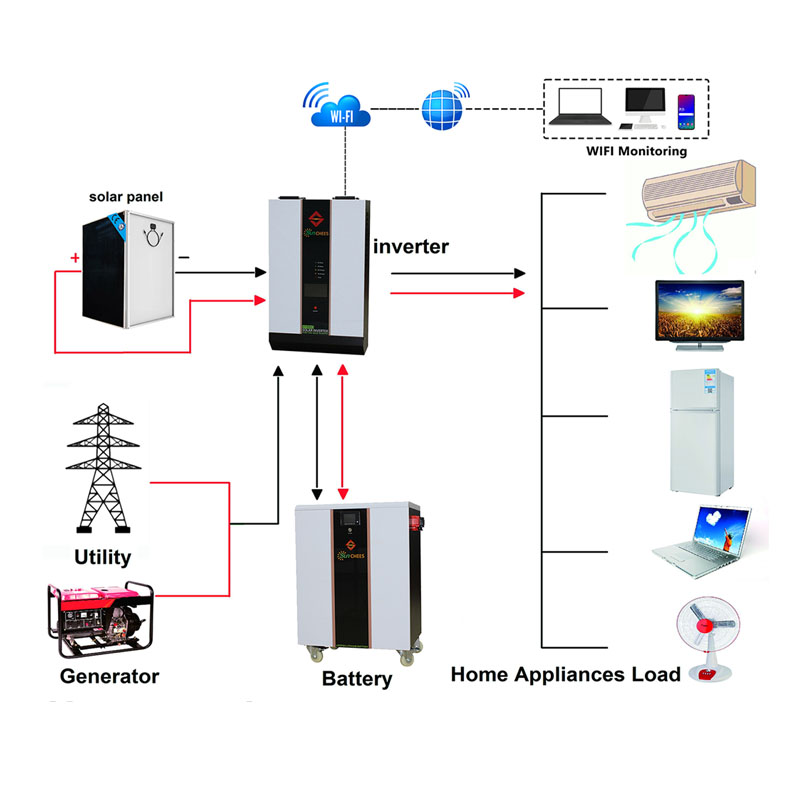

How does the off grid solar power system work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

Advantage:

• 100% green energy，no pollution，no noise
• High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
• Stand-alone system,easy installation and operation
• Nice after-sale service,provide installation guide and technical support

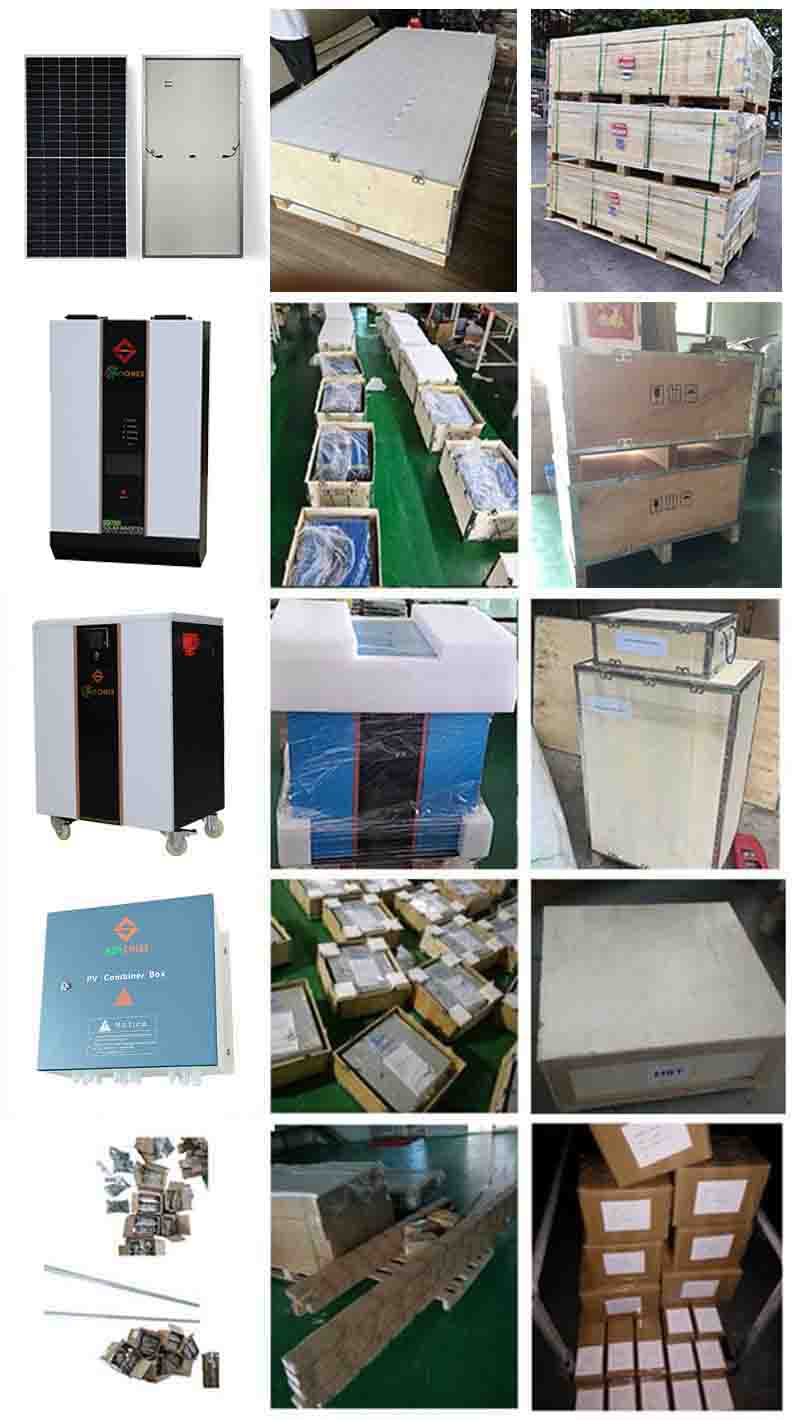

​Packing details:

• Solar panels are packed in carton and pallet
• PV combiners and inverter are packed in wooden box
• Solar charge controller,gel battery,and cables are packed in carton
• Solar panel racks are in cartons and bulk packing​

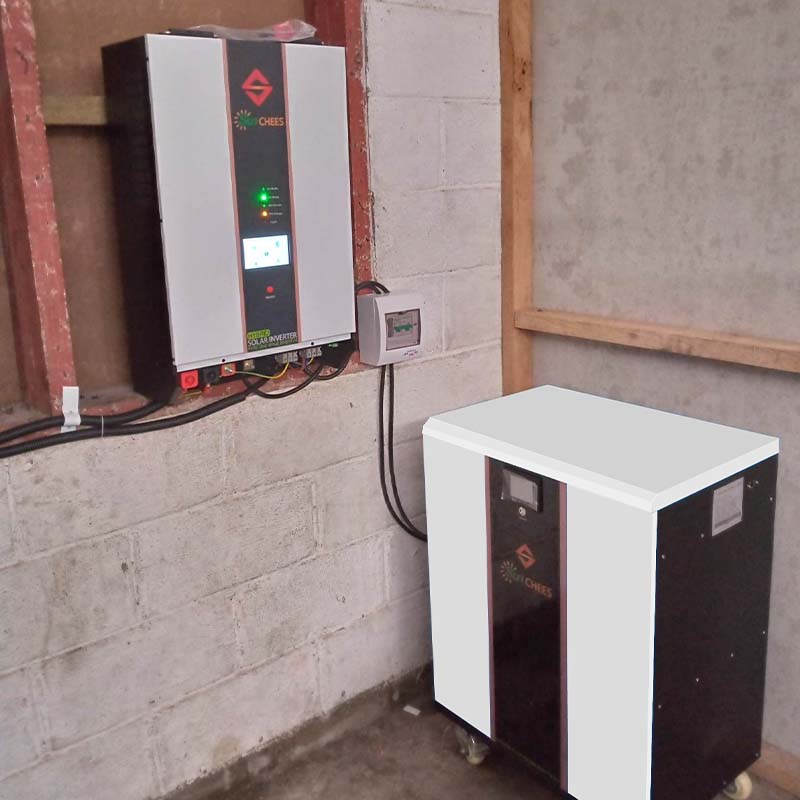

6kw solar system case:

Sunchees campany：

	Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.
Main business: solar power system one stop solutions,  solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .
	Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.

Warranty policy:

• Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
• lithium  battery has 3 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
• Inverter,charge controller,and PV combiner have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement

​
